79Ghz Wireless Security Radar Ground Loop Sensor Vehicle Detector Sensor for Parking Barrier Gate Access Control System

Numero di modello:	AK-AX2
MOQ:	5
prezzo:	$63-73

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Guangdong, Cina

Materiale:

plastica

Grado riflettente:

Grado di ingegnere

Diametro*Lunghezza:

6mm×6m

Grado di protezione:

Riempibile con acqua:

non riempibile con acqua

Ha luce:

con luce

Nome del prodotto:

Radar per cancello barriera con sensore di rilevamento veicolo

Distanza di rilevamento:

1-6 m (predefinito 3 m)

Tecnologia:

Sensore radar a onde millimetriche da 79 GHz, FMCW MIMO

Voltaggio di esercizio (V):

10-24v

Intervallo di temperatura(℃):

-40~85

Potenza (w):

Interfaccia del collegamento:

RS485 / Bluetooth

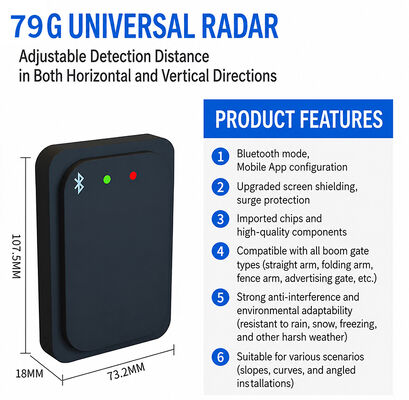

Dimensione (mm):

107.5*73.2*18

Peso lordo:

315 g

Applicazione:

Tutti i tipi di bracci barriera (diritti, recinti, pieghevoli, pubblicitari, ecc.)

Evidenziare:

Security Radar Ground Loop Sensor

Wireless Vehicle Detector Sensor

Descrizione di prodotto

Product descriptions from the supplier

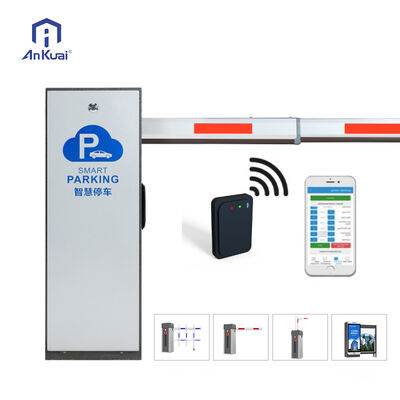

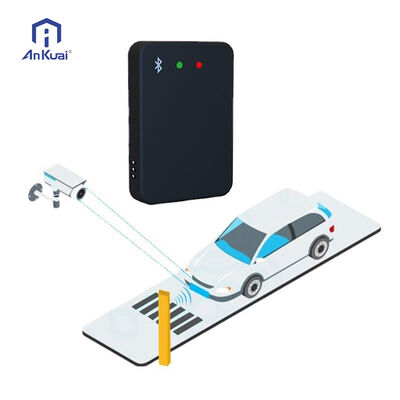

Barrier Gate Control Radar Is Developed For The Entrance And Exit Management Of Parking Lots Or Underground Garages. It Can Precisely Control The Rising And Falling Of The Barrier Boom By Cooperating With The Main Control Board Of The Gate Control System, Which Could Effectively Avoid The "Accidental Injury" Of The Barrier Boom To The Passing Vehicles Or Pedestrians In The Radar Field Of View,And Realize Intelligent Anti Smashing.

Radar Adopts The Highly Integrated Rf Chip Soc Scheme, Which Has The Characteristics Of Small Size, Low Cost, All-Weather Working Capability, High Detection Sensitivity, High Precision, Easy To Debug&Installation, Very Good Stability And Reliability.

The Working Frequency Of The Radar Is 79ghz, With Linear Frequency Modulation And Continous Waveform, Which Makes The Available Bandwidth Up To 4ghz.

The Radar Antenna Adopts Mimo Array Antenna That Enables The Radar Good Angular Resolution And High Angle Measuring Accuracy.

This Product Can Accurately Identify And Distinguish The Pedestrian, Vehicle And Other Targets Passing Through The Barrier Boom Area, And Avoid The Accidents Of "Smashing The Vehicle", "Smashing The Person" And "Not Dropping The Barrier Boom".
