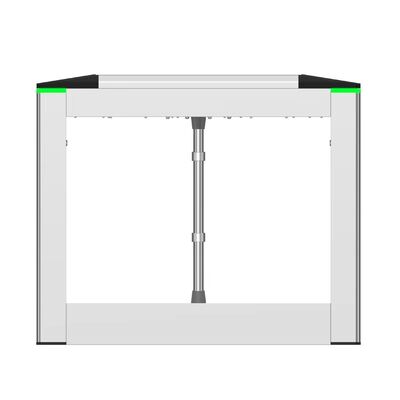

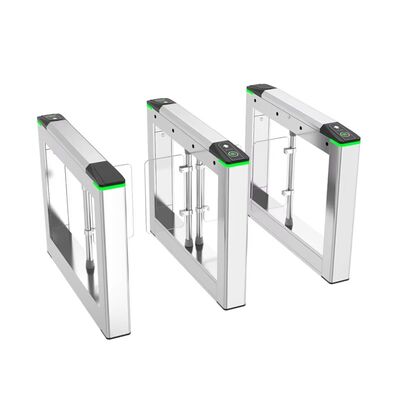

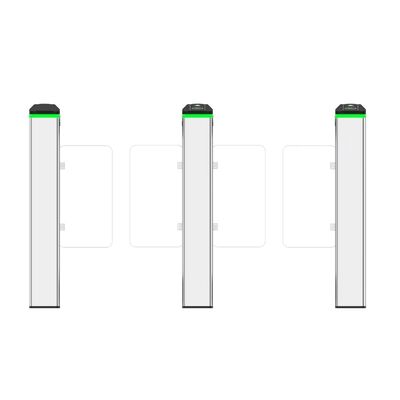

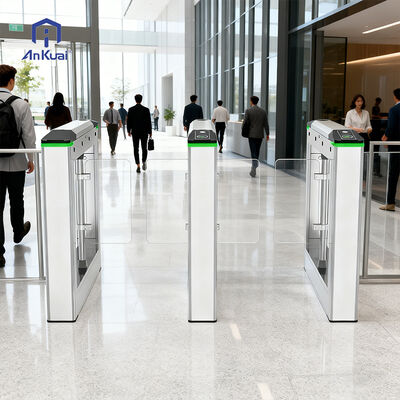

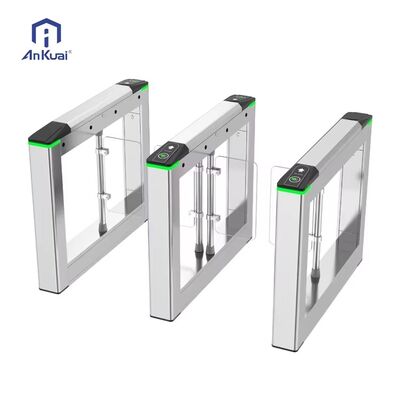

Stainless Steel Flap Barrier Turnstile with TTL232 Communication and 4 Pairs Infrared Input for Secure Access Control

Marchio:	Ankuai
Numero di modello:	AKT326
MOQ:	2
prezzo:	$341-380

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Guangdong, Cina

Materiale:

Acciaio inossidabile

Grado riflettente:

Grado di ingegnere

Diametro*Lunghezza:

6mm×6m

Grado di protezione:

Riempibile con acqua:

non riempibile con acqua

Ha luce:

con luce

Materiale del contenitore di macchina:

Acciaio inossidabile SUS304

Dimensione del contenitore di macchina:

1200*150*980mm (lunghezza * larghezza * altezza)

Tensione di alimentazione:

220V±10%/50Hz

Tensione di uscita:

CC 24 V

Corrente di lavoro:

5A (10A massimo)

Motore di guida:

Motore senza spazzola DC24V 60W/60K 1800rpm di CC

Interfaccia di comunicazione:

TTL232

Interfaccia di ingresso:

2 segnali d'apertura del portone, 1 segnale del fuoco, 1 segnale di allarme

Quantità infrarossa:

4 paia di input infrarosso

Evidenziare:

TTL232 Communication Flap Barrier Turnstile

4 Pairs Infrared Input Security Access Control Gate

SUS304 Machine Box Pedestrian Turnstile Gate

Descrizione di prodotto

Metro Station School Bi-directional Access Control Security Door Barcode Ticket Torniquet NFC Flap Turnstiles Gates

Product Overview

Turnstiles are essential for pedestrian flow control and identity verification in various high-traffic environments. Our bi-directional access control gates feature advanced NFC, barcode, and ticket verification systems for secure and efficient passage management.

Key Applications

Public transport hubs (subway/railway stations, airports) - Flap/swing gates with ticketing/facial/ID verification
Business premises (office buildings, corporate parks) - Facial recognition/card swiping for employee/visitor access
Industrial/construction sites - Tripod turnstiles with employee card authentication
Education/medical institutions - Personnel control with accessible passages
Commercial venues - Foot traffic counting with membership system integration
High-security areas (prisons, government agencies) - Full-height turnstiles to prevent climbing
Residential communities/scenic spots - Swing gates for convenient access and ticket verification

Technical Specifications

Model Number	AKT326
Machine box material	SUS304 stainless steel
Machine box size	14001801020mm (length * width * height)
Power supply voltage	220V±10%/50Hz
Output voltage	DC 24V
Working current	5A (maximum 10A)
Drive motor	DC brushless motor DC24V 60W/60K 1800rpm
Communication interface	TTL232
Input interface	2 gate opening signals, 1 fire signal, 1 alarm signal
Infrared quantity	4 pairs of infrared input
Alarm output	1 alarm output / built-in buzzer alarm

Frequently Asked Questions

What is your company's strength in this field?

We are a leading manufacturer in access control systems with ISO certification. Our 50,000 square meter facility houses 130+ national patents and a dedicated R&D team of 30+ professionals. With over 300 trained assembly workers and 76 distributors in China plus 50+ worldwide, we deliver proven solutions globally.

How do you guarantee your product quality?

Our products hold ISO9001 and CE certifications, demonstrating our commitment to quality. We implement rigorous quality control measures throughout production to ensure reliable performance.

Do you provide OEM service?

Yes, we offer comprehensive OEM services including custom barrier gate configurations and branding options. We can customize both the product design and packaging to meet your specific requirements.

What is your lead time?

Standard items: 1-50 sets in 5 working days, 50-100 sets in 7 working days, 100-500 sets in 15 working days. Custom-made packaging or logos may require an additional 3-10 working days.

Do you provide warranty and after-sales service?

We offer a 1-year quality guarantee with comprehensive after-sales support. Our team of engineers and sales professionals provides timely assistance and technical guidance whenever needed.

What are your after-sale services?

Our after-sales services include: 24-hour response to inquiries, expert technical support from our engineering team, and ongoing guidance for product use and maintenance. Contact our dedicated after-sales team for any assistance.
